CSF 8352 High Performance Charge Air Coolers for MCLAREN 720S / 765LT / 750S / GT / GTS
CSF High-Performance Bar/Plate Intercoolers by PWR – Enhanced Cooling Efficiency

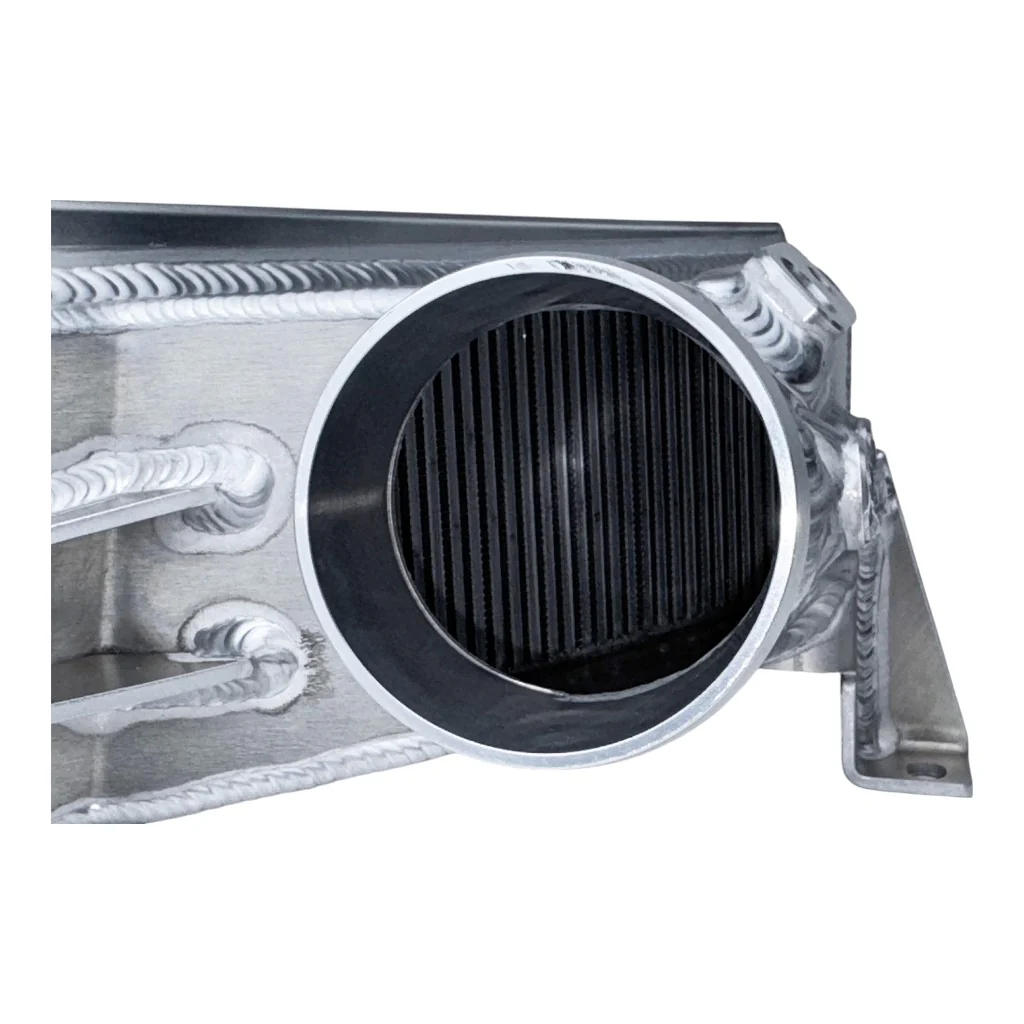

CSF introduces advanced performance intercoolers utilizing hand-built bar/plate cores crafted in PWR’s Tier-1 OEM facility in Indianapolis, USA. Designed to aerospace standards with ultra-thin materials, these intercoolers provide exceptional cooling efficiency by maximizing internal fin density. Compared to factory tube/fin intercoolers, PWR’s bar/plate cores incorporate three times the number of fin rows, significantly boosting heat transfer performance. Furthermore, the robust bar/plate design offers superior burst pressure resilience, effectively managing boost spikes without pressure drop.
Precision craftsmanship defines these intercoolers, with expert technicians meticulously welding cladding as thin as 0.3mm. Production is limited to five cores per day, emphasizing the unparalleled quality and attention to detail involved in each intercooler's assembly.
- Rapid recovery of Intake Air Temperatures (IATs)
- No pressure drop compared to OEM intercoolers
- PWR high-performance bar/plate core, pressure-tested up to 120psi

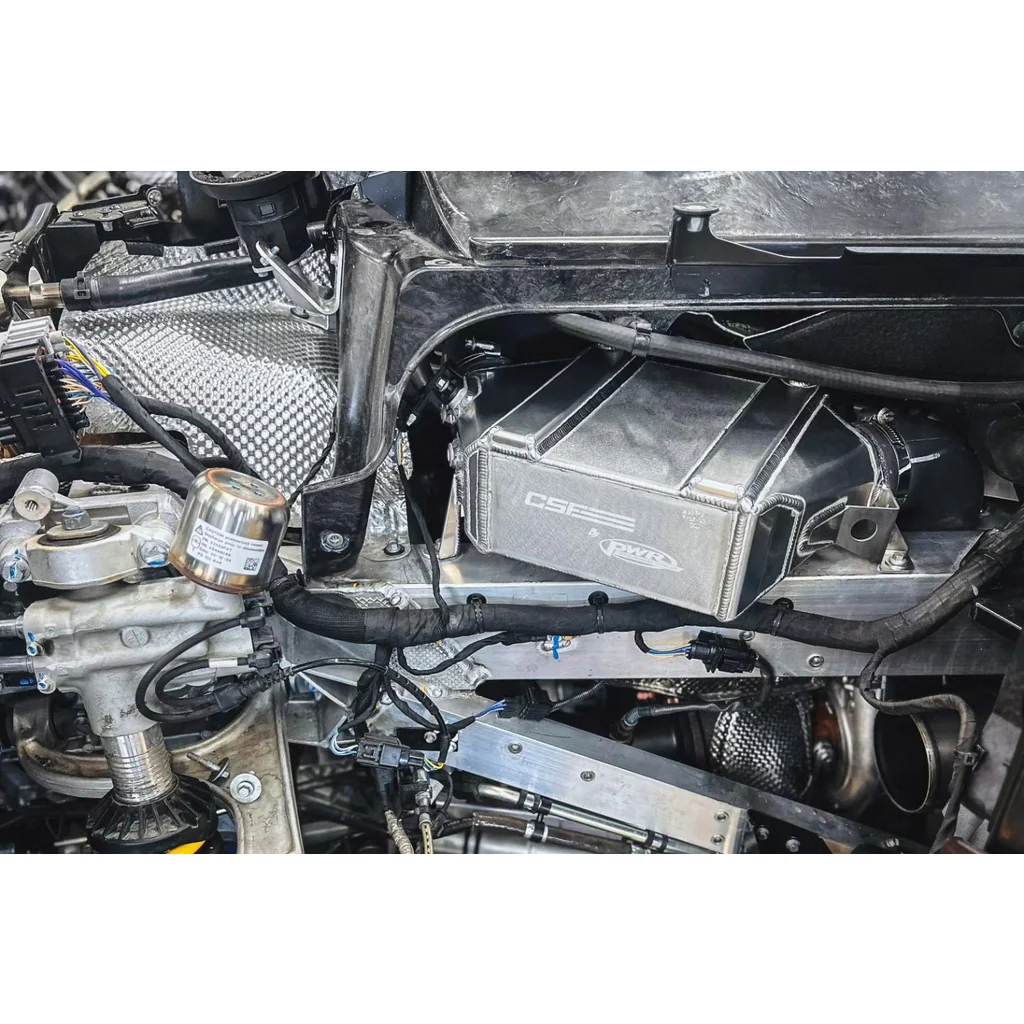

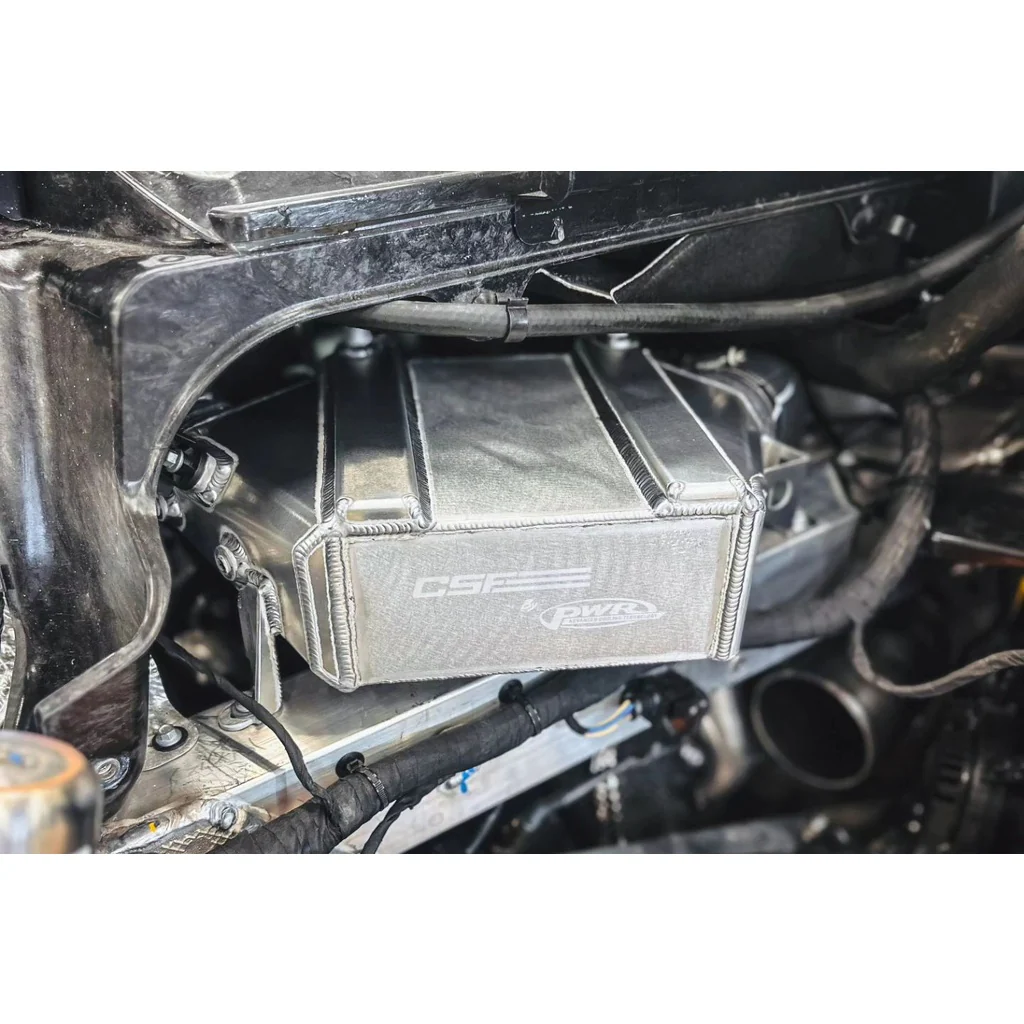

- Plug-and-Play “drop-in fit” installation, no modifications required

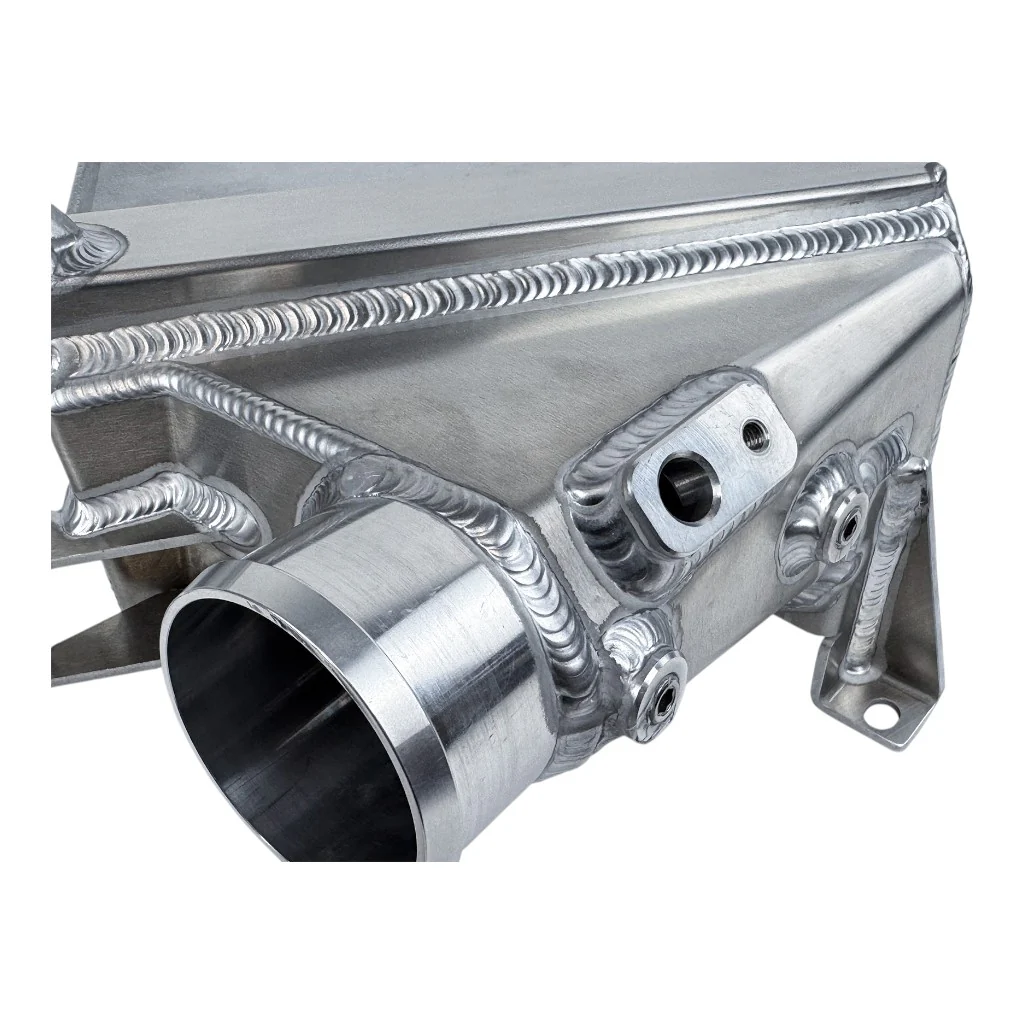

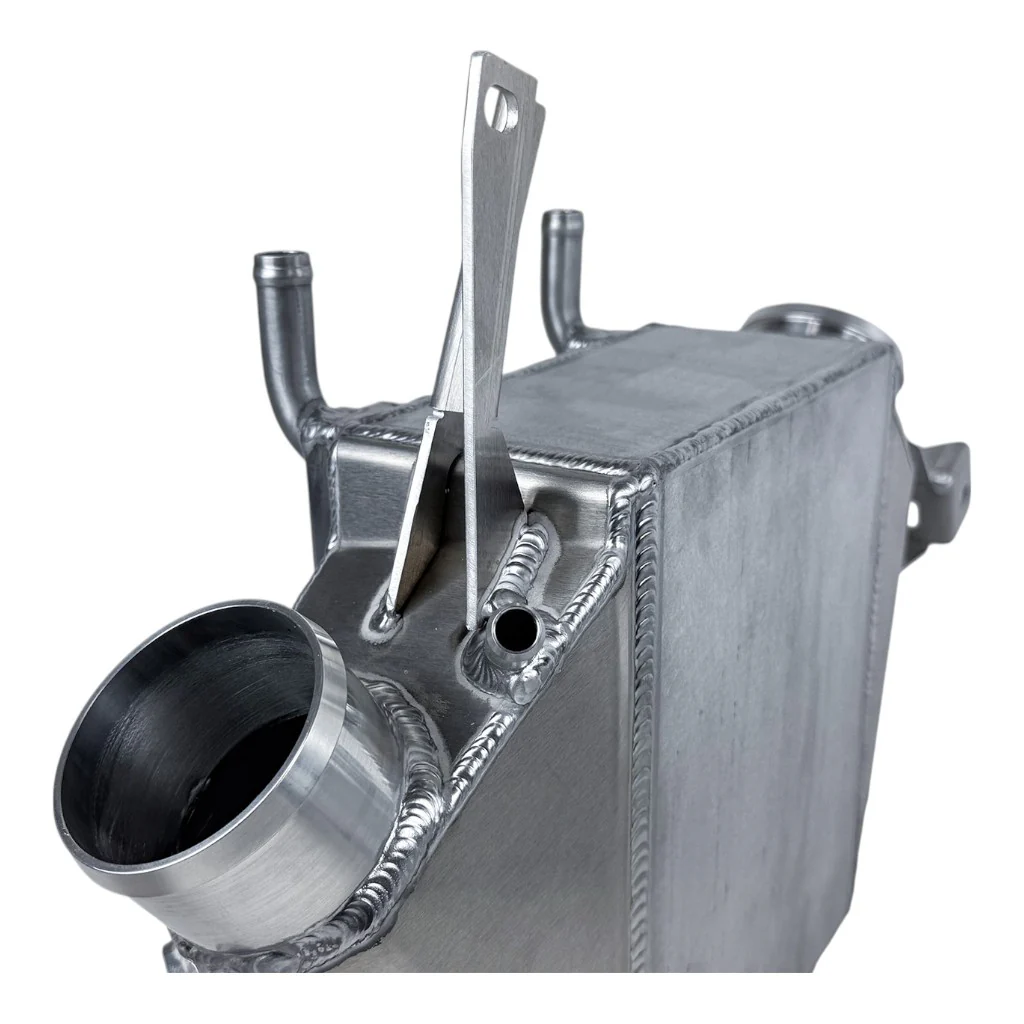

- CNC-machined mounting brackets and OEM-style inlet/outlet ports

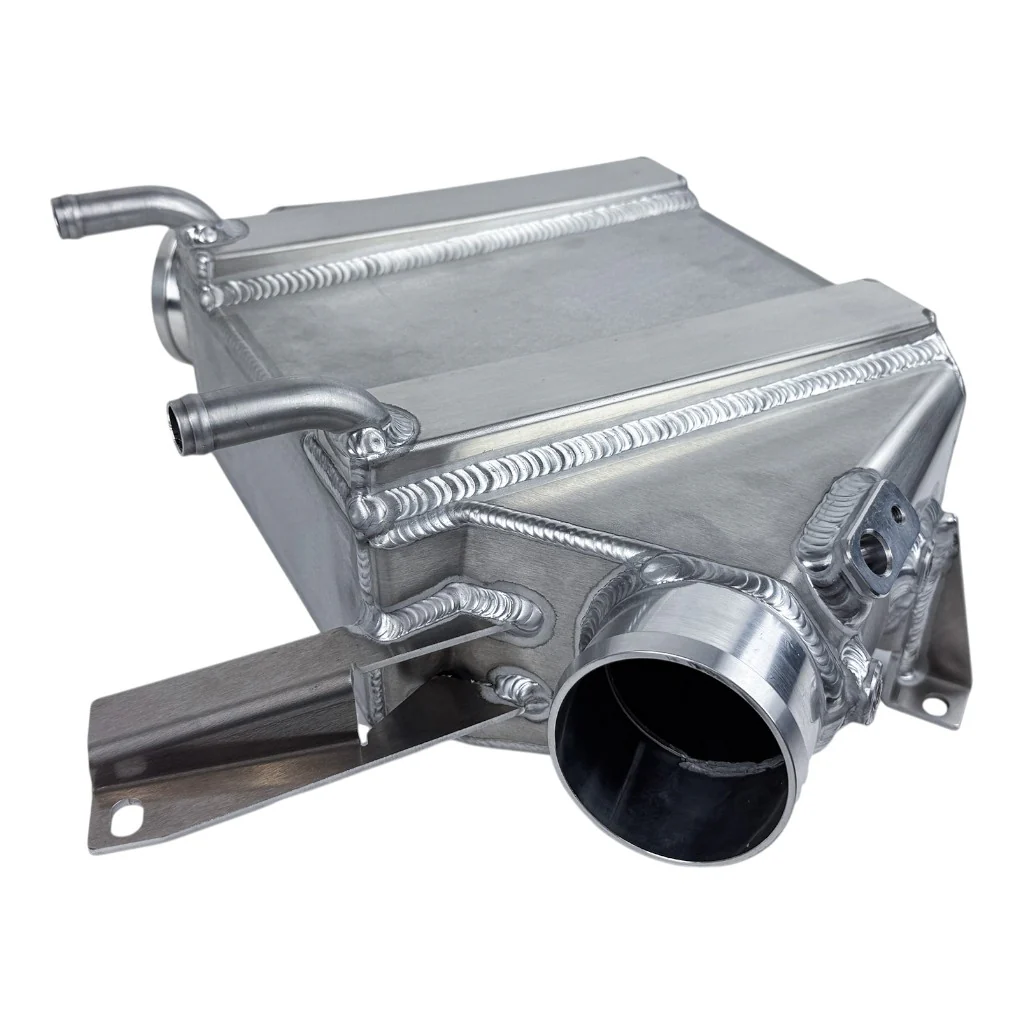

- 100% aluminum construction with precision TIG-welding
- Hand-brushed satin finish
- Individually leak and pressure tested
- Backed by a limited lifetime warranty
Specifications:
- Core Type: Bar/Plate by PWR
- Air-side & Water-side Fin Thickness: 0.08mm (~50% thinner than conventional cores)
- Air-side Bars Height: 5.35mm (vs. standard 7.5mm)
- Cladding Thickness: 0.3mm (enhances thermal transfer, reduces weight)
- Air-side Fins Per Inch (FPI): 28 (approximately double typical cores)
- Water-side Fins Per Inch (FPI): 26 (standard cores ~18 FPI)
- End Plates: 1.5mm thickness with pocketed 3mm extrusions for maximum core volume and weld precision
- Kit includes: Pair (left & right) of charge-air coolers/intercoolers
Applications:
- 2018-2023 McLaren 720S
- 2019-2024 McLaren 720S Spider
- 2021-2024 McLaren 765LT
- 2023-2024 McLaren 765LT Spider
- 2019-2023 McLaren GT
- 2023+ McLaren 750S
- 2023+ McLaren 750S Spider
- 2024+ McLaren GTS
OEM Part Numbers:
- McLaren: 14F0656CP04 (right)
- McLaren: 14F0657CP04 (left)
Original: $7,285.68
-70%$7,285.68
$2,185.70
