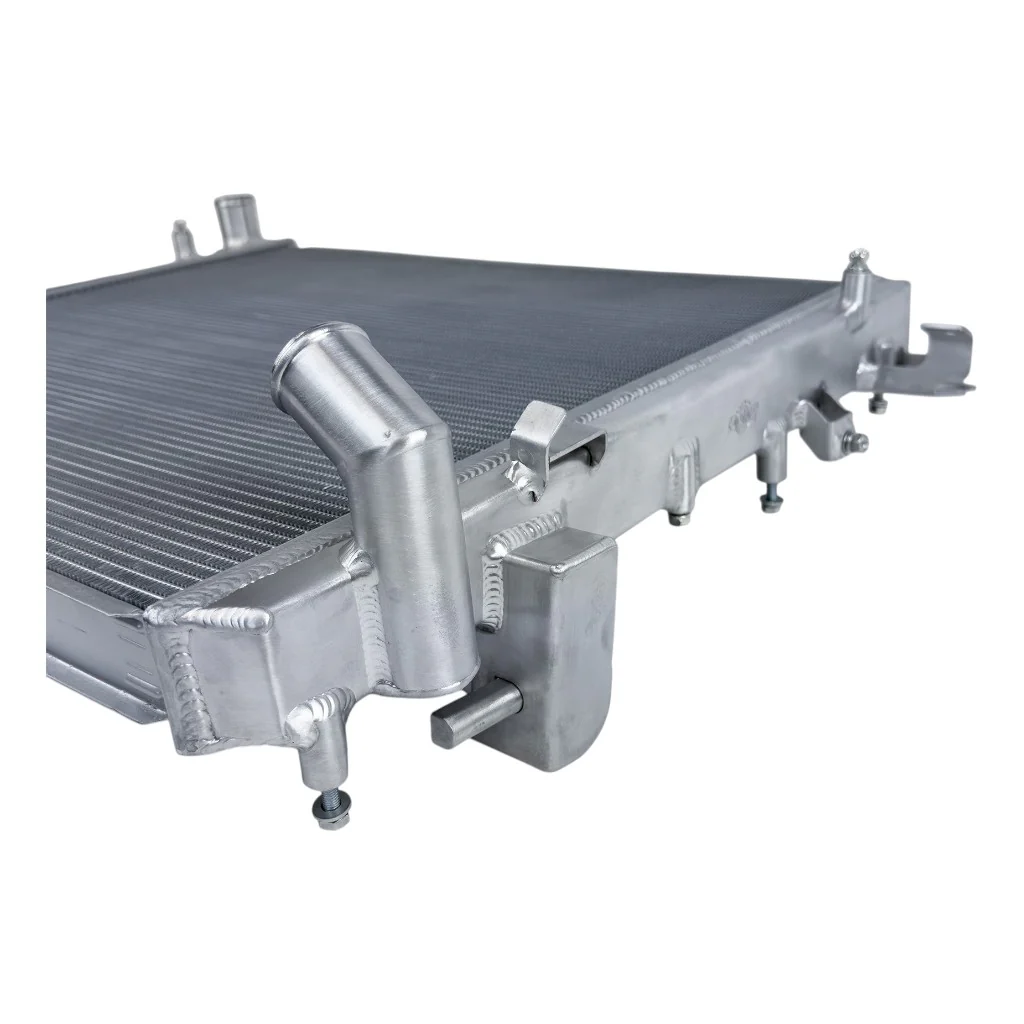

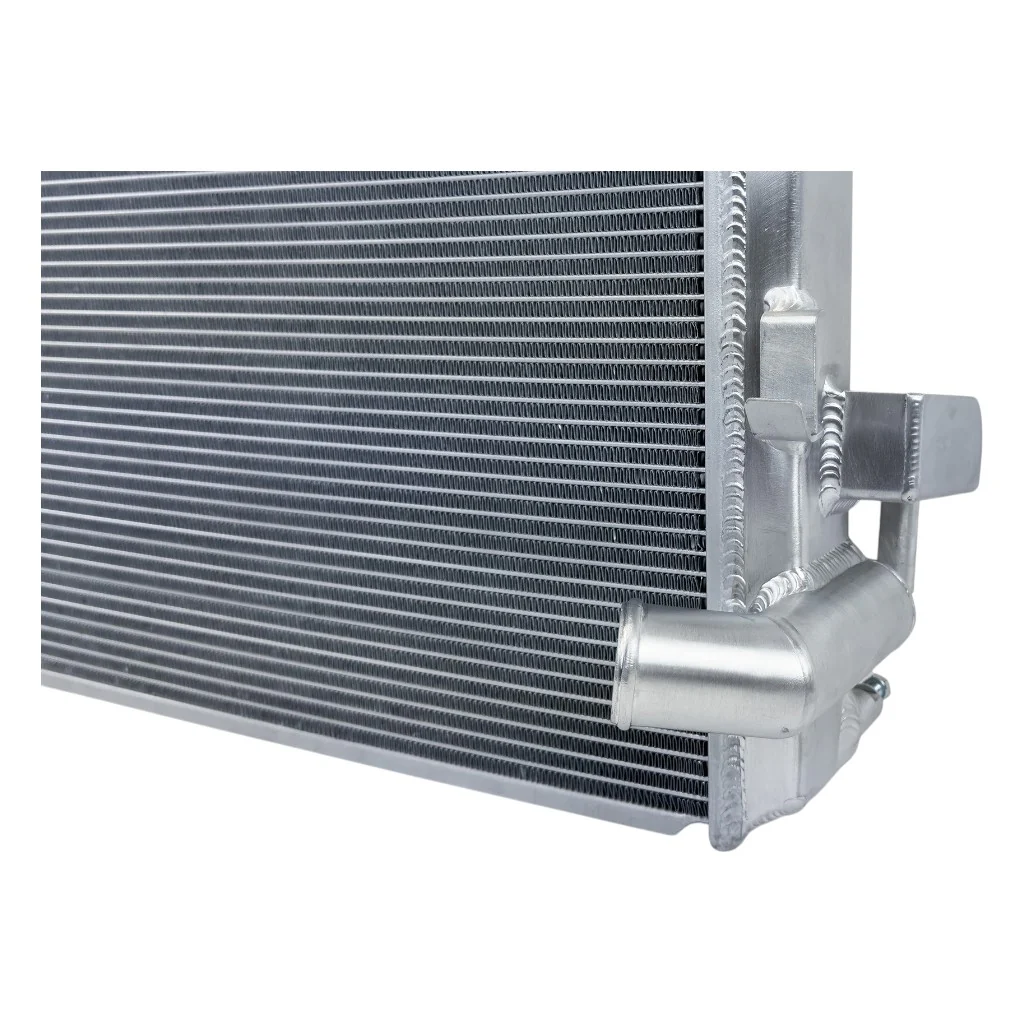

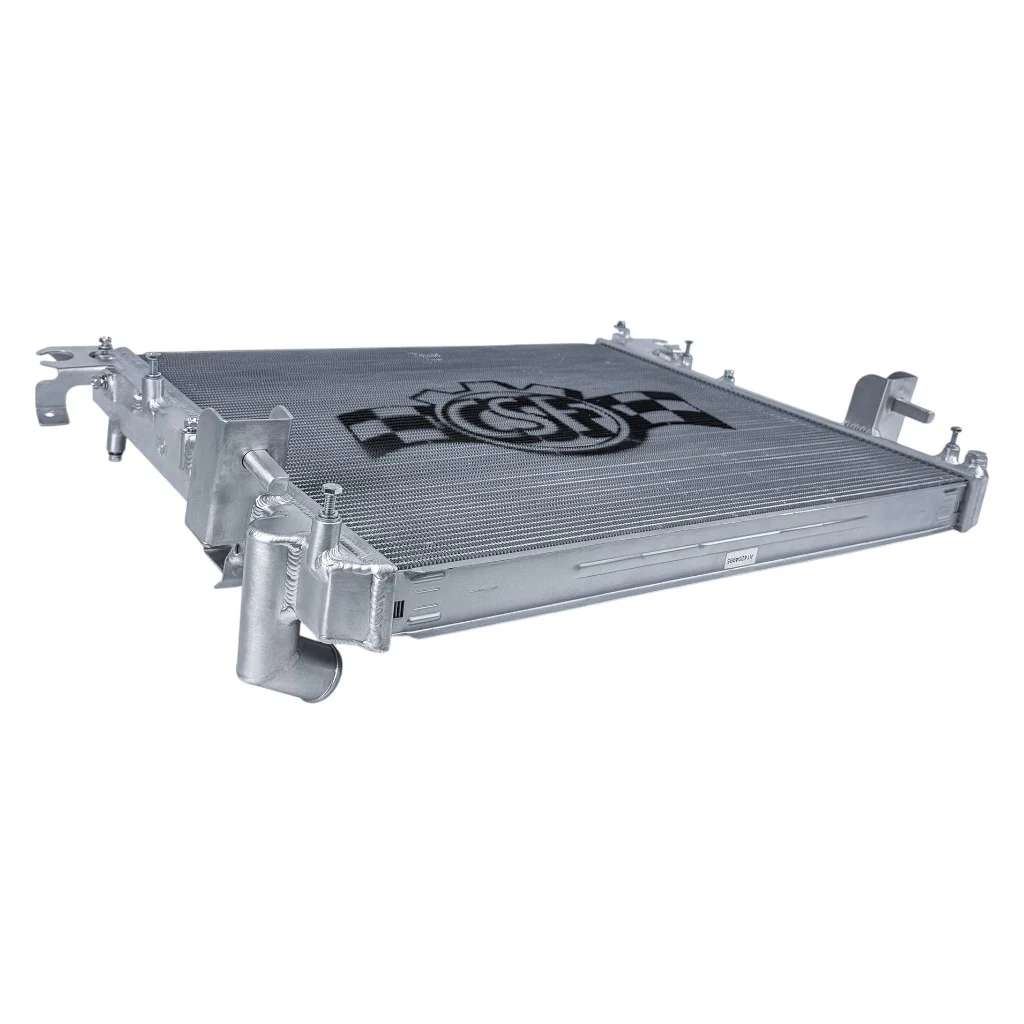

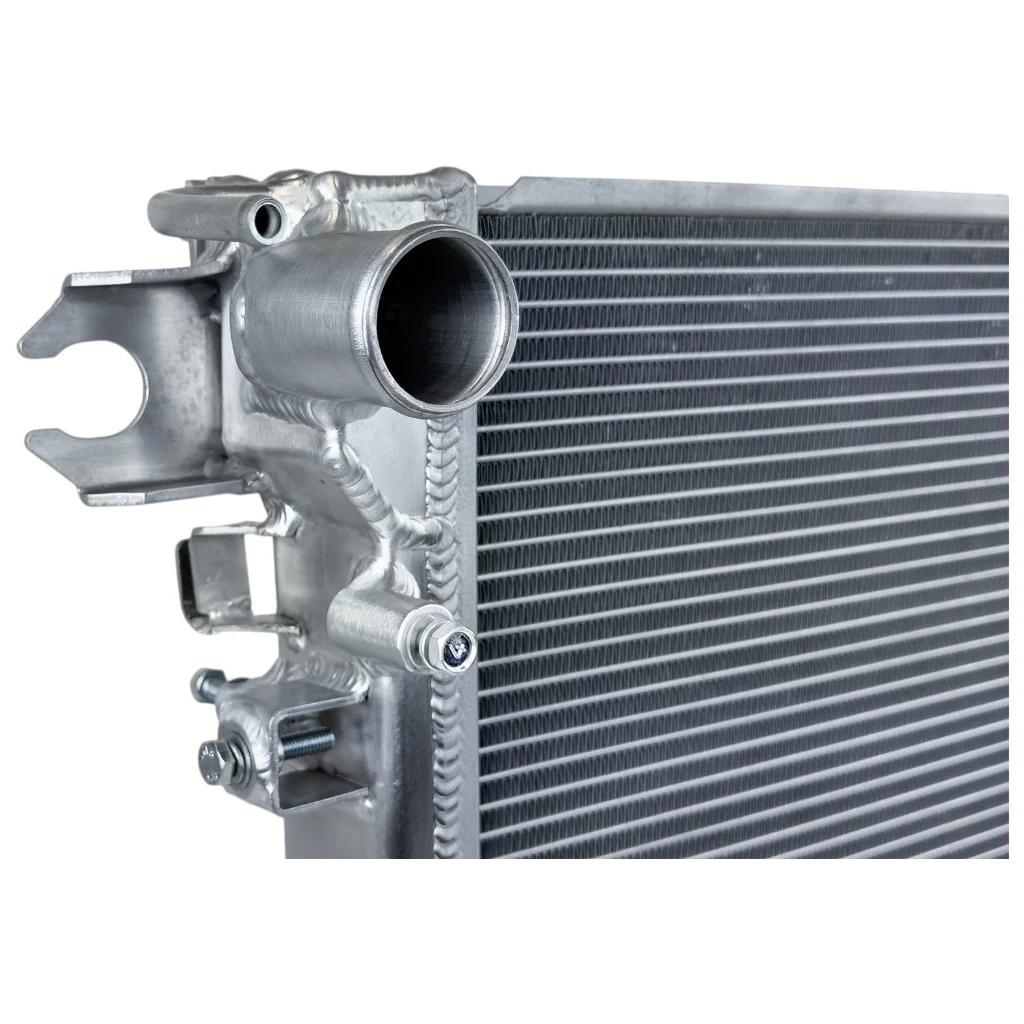

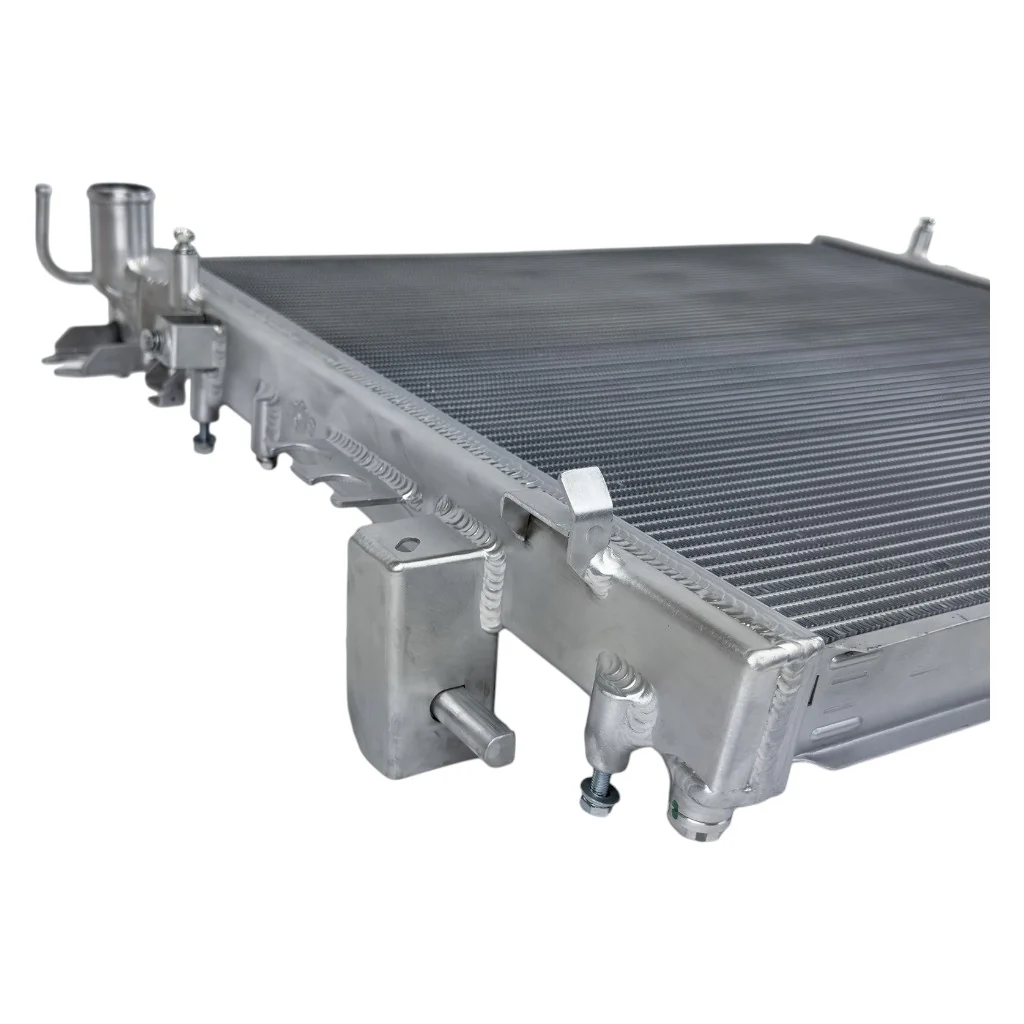

CSF 7340 Heavy-Duty Radiator for JEEP Wrangler (JL) / Gladiator (JT)

Description CSF 7340 Heavy-Duty Radiator for JEEP Wrangler (JL) / Gladiator (JT)

An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2018-2024 Jeep Wrangler 3.6L V6 (incl. Hybrid)
• 2020-2023 Jeep Wrangler 3.0L V6 Turbo Diesel
• 2019-2024 Jeep Wrangler 2.0L L4 Turbo (incl. Hybrid)
• 2020-2023 Jeep Gladiator 3.6L V6
• 2021-2023 Jeep Gladiator 3.0L V6 Turbo Diesel

OEM Part Numbers:

• Mopar: 68314786AC
  • Supersedes:
    • Mopar: 68314786AB
    • Mopar: 68314786AA
